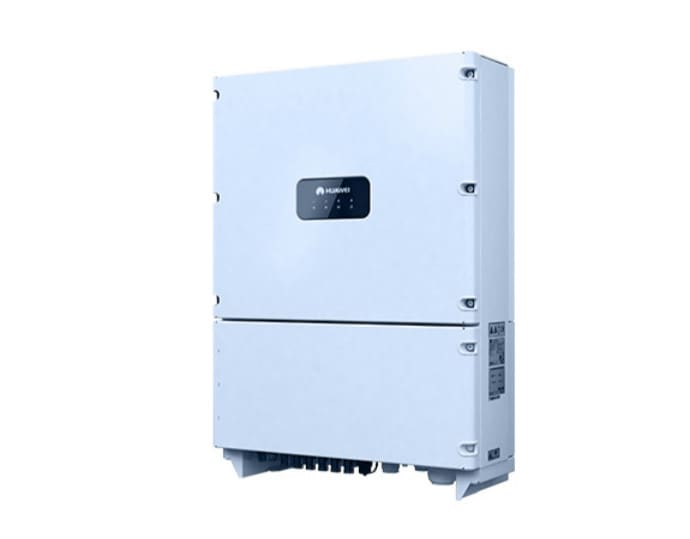

Smart PV Controller (SUN2000-40KTL)
Supplied by:
Huawei International Co. Limited
The SUN2000 30-40KTL smart PV controller adopts the concept of "out with the Copper, in with the Silicon" and uses the Huawei Hisilicon chip and operating system, reducing the usage of copper devices. These features convert the traditional power converter to a smart controller that can "think" and the "brain" of a power plant, achieving better efficiency and quality.
RS485 transmission is upgraded to PLC transmission, providing more reliable transmission and ensuring that monitoring data can be trusted.
Specifications
| Manufacturer: | Huawei Technologies Co. |
| Model: | SUN2000-40KTL |
| Country of origin: | China |
| Max. Efficiency (%) | 98.80 |
| Max. DC Usable Power (W) | 36700 |
| Max. Input Voltage (V) | 1000 |
| Max.Current per MPPT (A) | 23 |
| Rated Input Voltage (V) | 720 |
| Max. Number of Inputs | 6 |
| Number of MPPTs | 3 |
| Rated AC Active Power (W) | 36000 |
| Min Full Power MPPT Voltage (V) | 580 |
| Max Full Power MPPT Voltage (V) | 850 |
