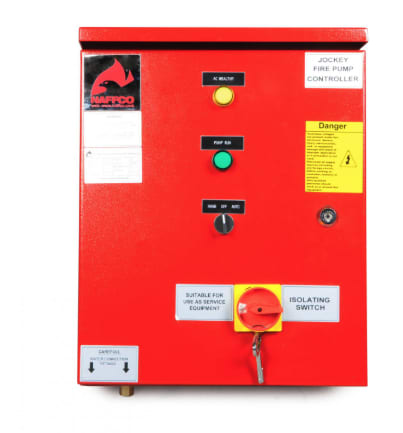

Jockey Pump Controllers - Star Delta Open Transition

Jockey Pump Controllers - Star Delta Open Transition are listed by Underwriters Laboratories (UL file number E309408), in accordance with UL 508A (Standard for Industrial Control Panel), NFPA 70 (National Electric Code) and NEMA Standards. Power ratings vary from 1.5 to 40 horsepower, 380 to 415 volts, 50 or 60 Hz. Only high quality UL listed or UL recognized components are used in these panels to guarantee the best possible reliability. Also high quality UL listed enclosures are used.

Power (HP): 1.5-40

Rated Voltage (VAC): 380-415

Frequency (Hz): 50 or 60

Rated Current (A): 3.3- 66

Short Circuit Current (kA): 5

Enclosure Size (mm): 500 (H) x 400 (W) x 250 (D) - 600 (H) x 500 (W) x 250 (D)
