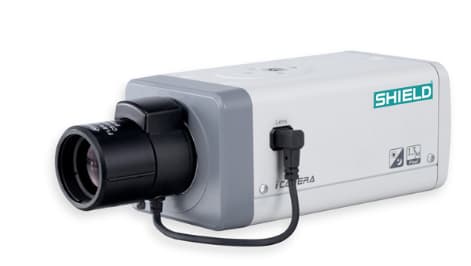

IP Box Camera SH-IPHF2100N

IP Box Camera has 1/3" 1.3MP APTINA CMOS image sensor.High-performance TI DaVinci series DSP.H.264/MJPEG video compression and JPEG image capture.Support dual-stream encoding. Support WDR.

Operating System: Embedded Linux
Resource: Simultaneous Remote Monitoring, Local Recording, and Remote Control
Effective Pixels: 1280(H)x960(V)
Electronic Shutter: Auto/Manual, 1/4~1/10000s
Min. Illumination: 0.1Lux/F1.2(Color), 0.005Lux/F1.2(B/W)
Signal Noise Ratio: >50dB
Gain Control: Auto/Manual
White Balance: Auto/Manual
Bit Rate: 64kbps/32kbps/10.2kbps
Snapshot Fastest: 1 fps JPEG Capture
Video Format: NTSC

Analogue Video Format: 1 channel BNC(1.0Vp-p, 75Ω)

Audio Compression: G.711a / G.711u / PCM
Input: 1 channel 3.5mm Jack Line In
Output: 1 channel 3.5mm Jack Speak Out
Operating Environment: -10°C~+60°C, 10%~90%
PoE: IEEE802.3af
WDR: On(1~100)/Off
Power Consumption: <6W
