Garbage Chute Ventilation with Vent Pipe

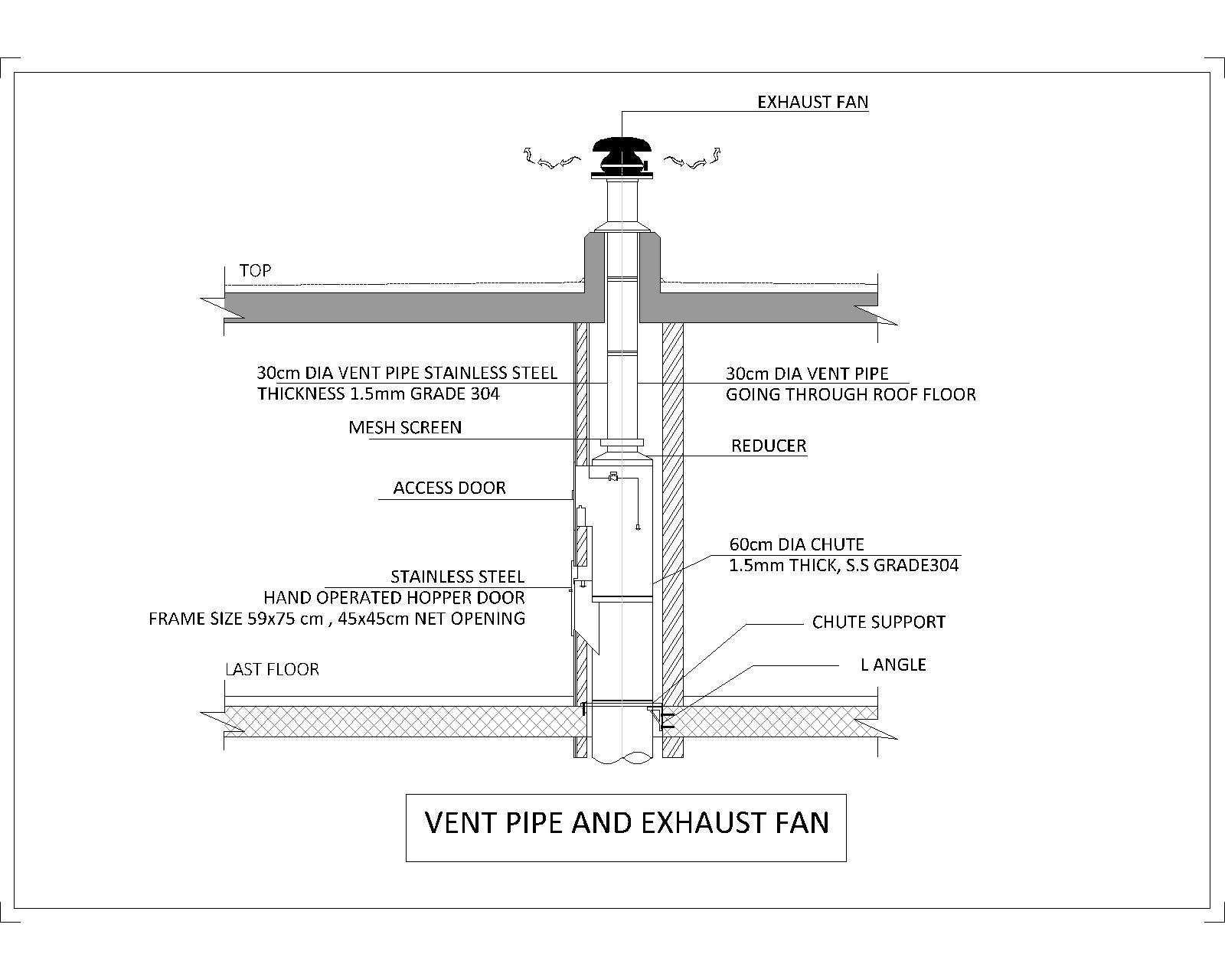

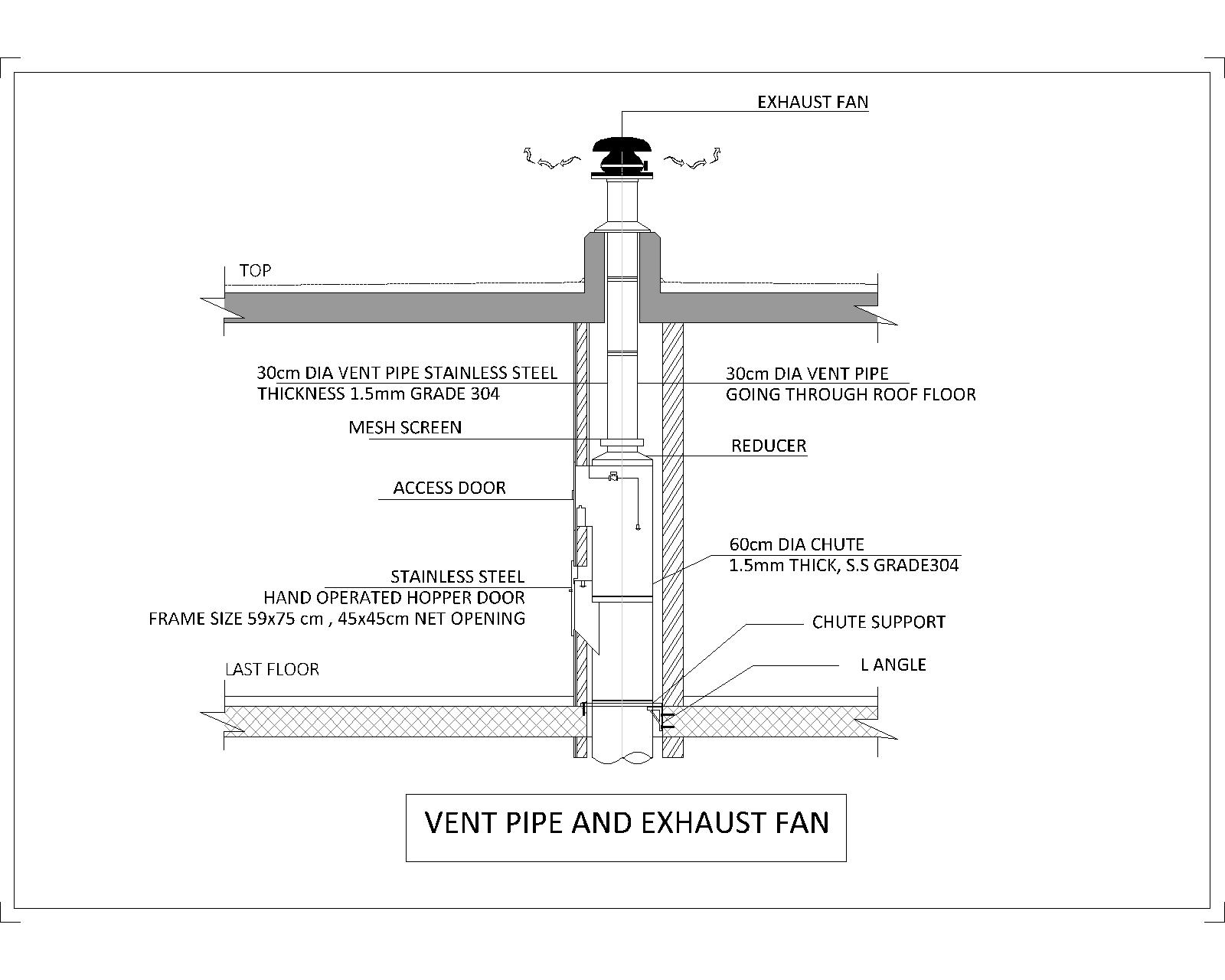

A vent pipe with 300 mm diameter, terminating 1.2m above roof level, manufactured from 1.5 mm Stainless Steel Grade 304 will be provided above the chute head plate above the cleaning and disinfection system. The vent pipe will be covered by a copping piece and will be connected to an inline exhaust fan. The vent pipe will discharge to the atmosphere at the roof level without any obstruction.

Ventilation Requirement:
An inline axial blowing fan will be provided on the top for extracting bad smell.
