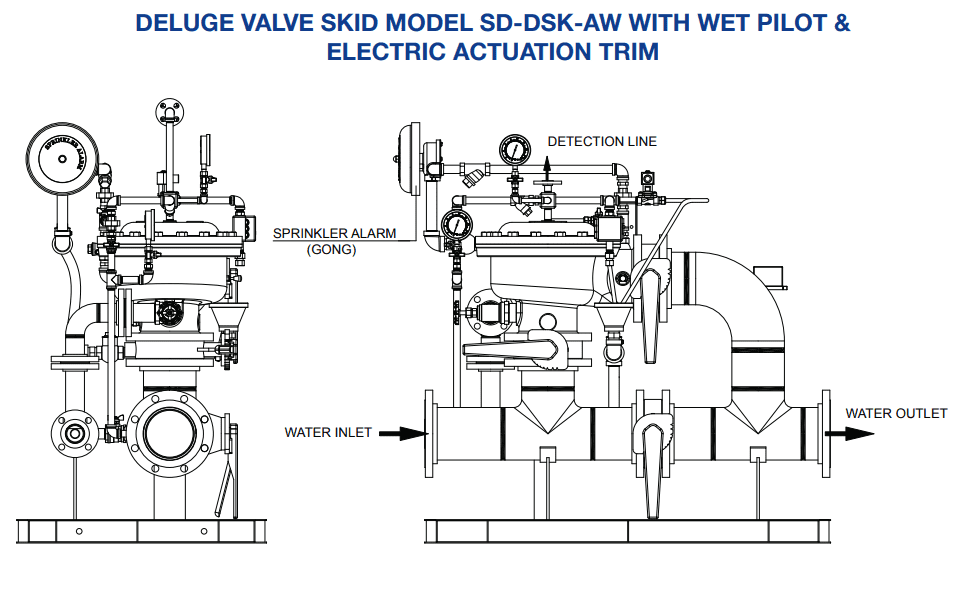

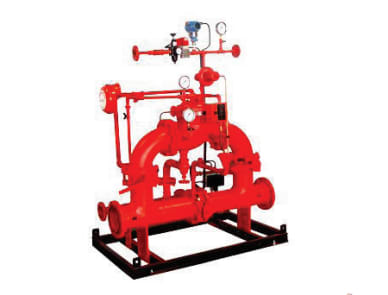

Deluge Valve SD-DSK-AW

Deluge Valve SD-DSK-AW are integrated deluge skid systems. The entire package is pre-wired and all water connections have flanged ends to provide minimal installation time. The package includes an inlet, outlet, bypass valves, pressure switches, solenoid valve, common drain and flanged connection for detection network.

Features :

1. Professionally pre-assembled and factory tested
2. UL Listed modular package
3. Quick and convenient installation
4. Internally wired
5. Cost effective and reduced installation time
6. Compact, aesthetically pleasing appearance

Technical Data :

• Actuation Type: Wet Pilot, Electric, Manual.
• Trim: Galvanized steel with brass valves as standard supply, Optional Stainless Steel.
• Finish: RAL 3000 Painted.
• Deluge Valve Model: SD-DVA.
• Skid Type: Open Skid.
