Air Condition Semi Hybrid CRS Series (SH-CRS-30000)

Air Condition Semi Hybrid CRS Series (SH-CRS-30000) is the next generation hybrid air conditioning system. These are the most efficient and environmentally responsible 100% Fresh Air Cooling system to any residential, commercial or industrial application, Air2O is a world-leading next-generation hybrid air conditioning system with unparalleled performance and eco-credentials.

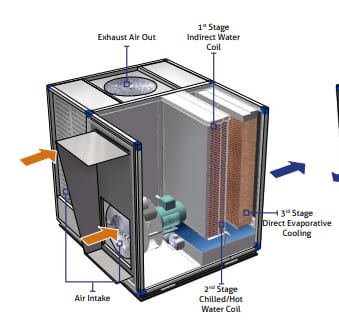

This also utilizes a two-stage evaporative cooling solution, in conjunction with either a chilled water coil for additional cooling or hot water coil for heating.

Special Features:

• Built-in economizer function
• High-efficiency direct drive plug fan.
• High efficiency secondary axial fan with low noise design.
• Separate primary and secondary water circuits for optimum efficiency.
• 24 volt control panel compatible with any external interface / control / Thermostat.
• Automated water quality management system, field adjustable for specific site requirements.
• Water limit switches for pump protection.
• UV filtration.
• Penta Post-construction.

Properties:

• Room Temperature: 78°F (25°C)
• Volume (m3/s): 14.10
• Volume(m3/h): 50760
• Cooling Capacity Room(Ton): 135
• 480, 380, 220v 50/60 Hz single or three phase power
