AC Rectangular in Line Duct Fans BDKF 30-15
Supplied by:
Meaptashi

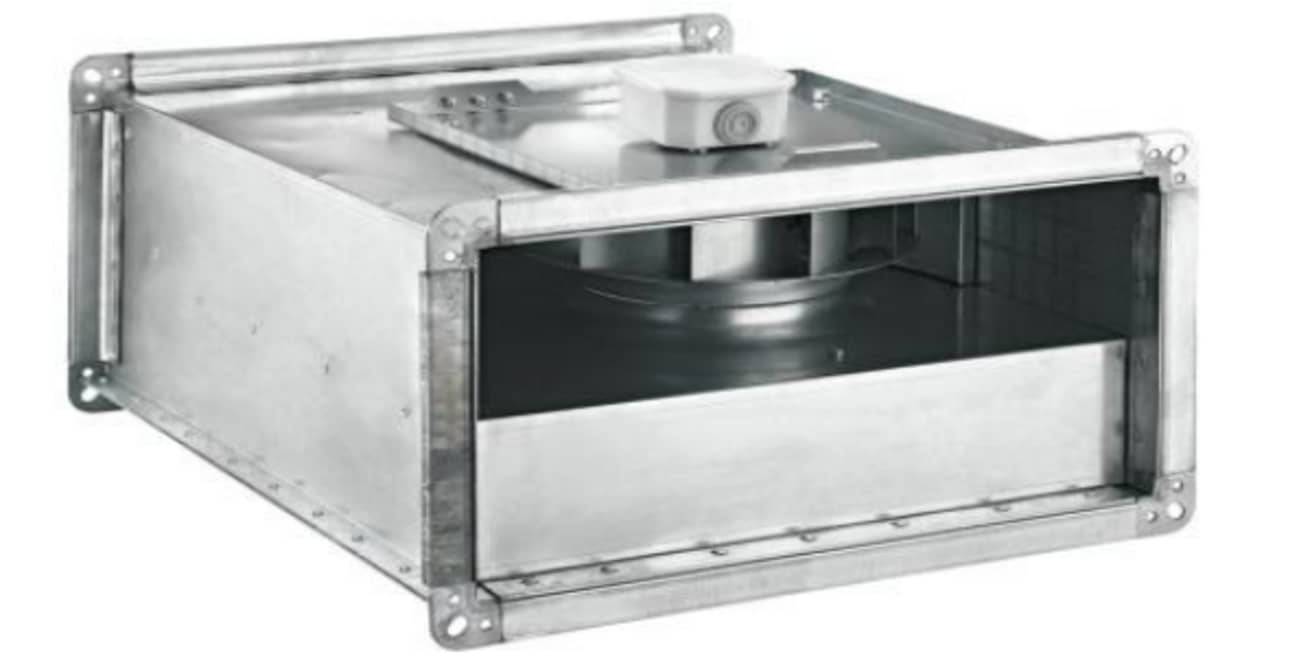

AC Centrifugal Radial Fan Motorized Impeller BDKF 30-15 is highly efficient and compact structure.

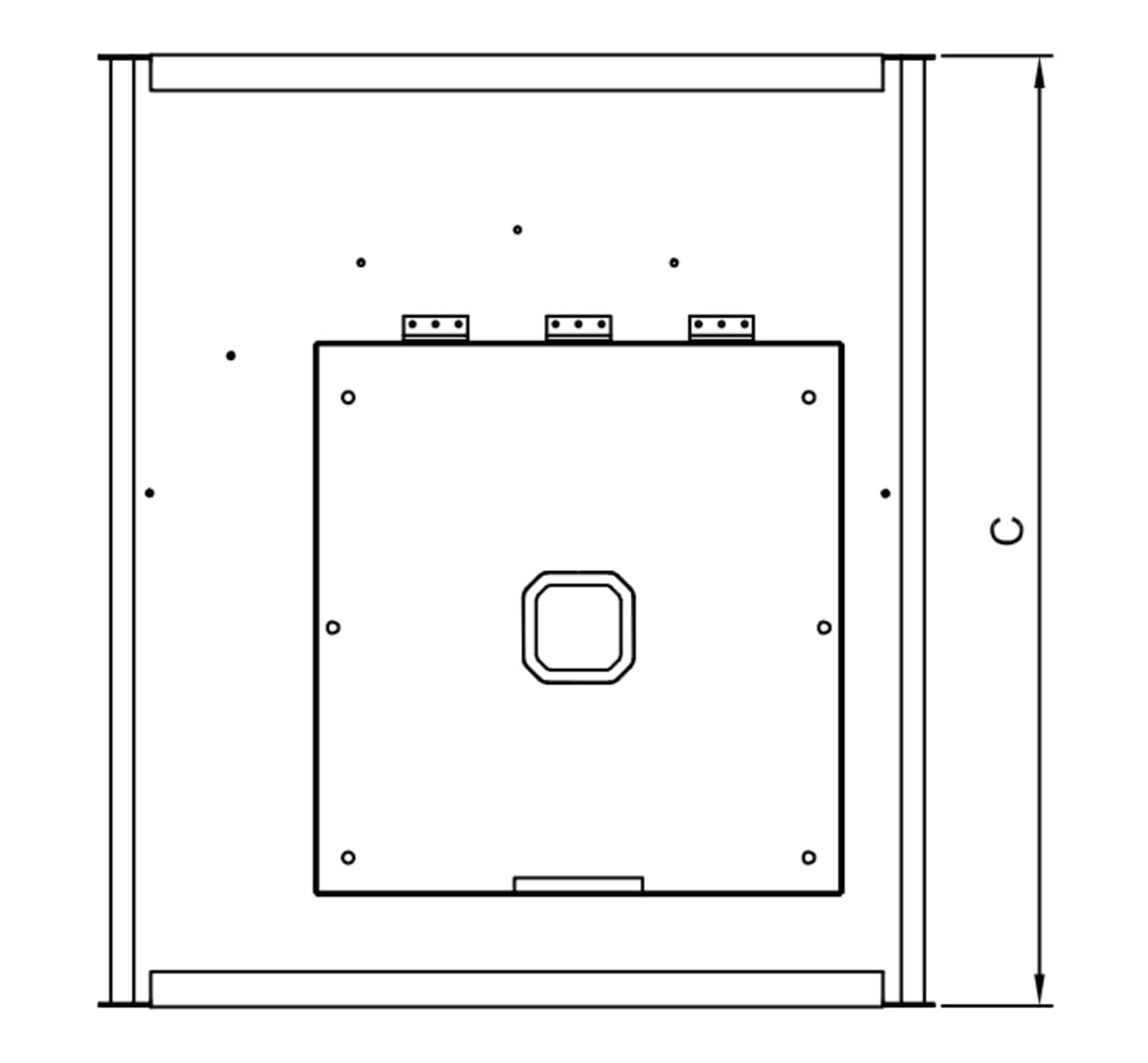

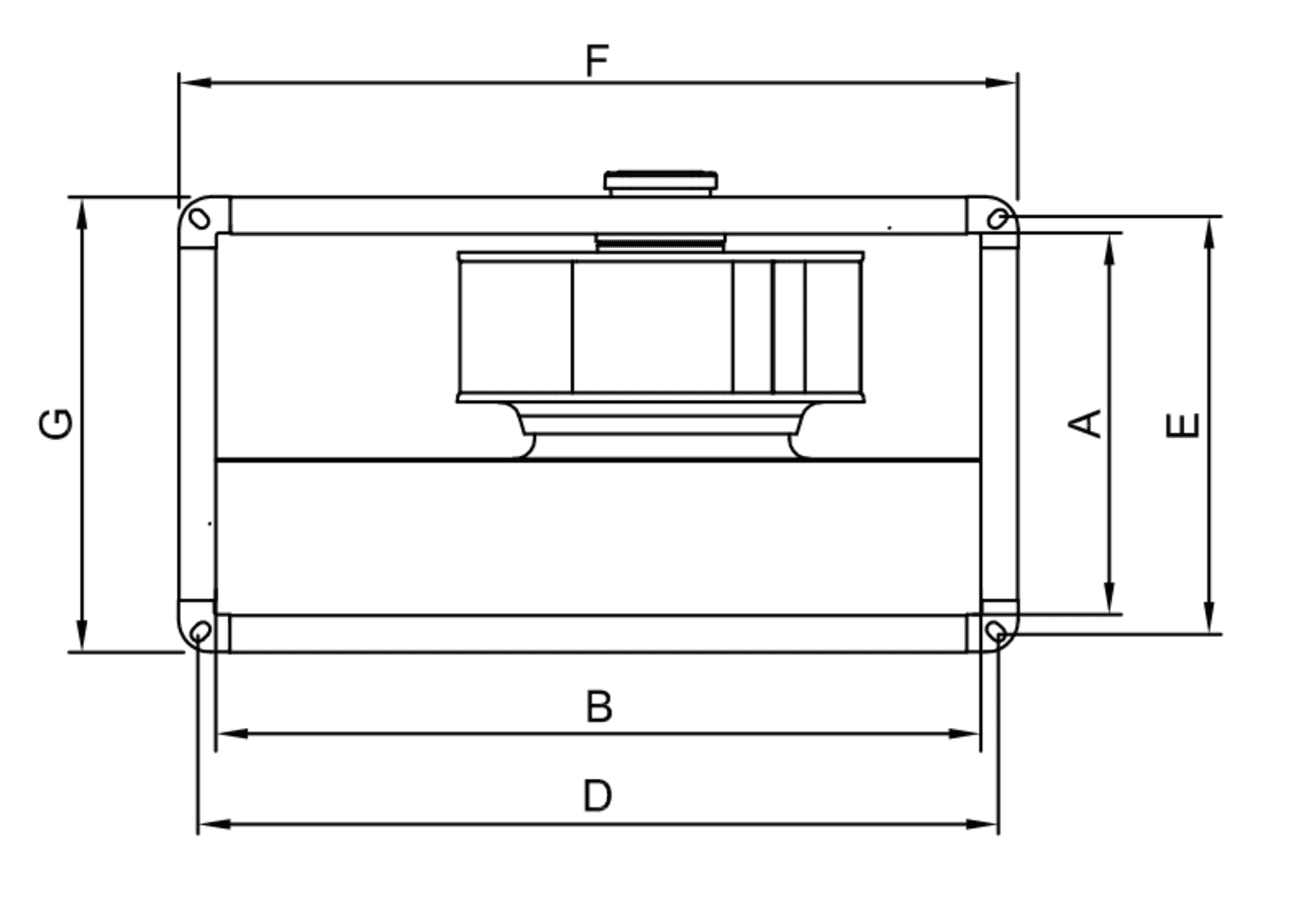

Dimensions:
- A: 150
- B: 300
- C: 400
- D: 320
- E: 170
- F: 350
- G: 200
Power(W): 90
Current(A): 0,4
Capacitor(μF): 2,5
Sound Pressure Level(dB(A)): 70
Specifications
| Manufacturer: | Bahcivan (BVN) |
| Model: | BDKF 30-15 |
| Country of origin: | Turkey |
| Speed Control | Optional Controller |
| Insulation Class | Class B |
| Standard | EN 60335-1, EN 60335-2-80 |
| Frequency (Hz) | 50 |
| Applications | Residential, Commercial, Industrial |
| Material | Galvanized Sheet Steel |
| Voltage (V) | 230 |
| Speed (d/d) | 2630 |
| Features | High Performance, Trouble Free, Direct to Duct Operation |
| Air Flow (m3/h) | 480 |
| Weight (Kg) | 7 |
