Steel Lintel Proline 100U is used to replace conventional casting of concerts lintels over door openings. Lightweight lintels are manufactured using steel of galvanized coating type z275 for anticorrosion.

Lengths (L): 900-1200

• Height (H): 50, 75
• Material Thickness: 2, 3, 4
• Safe Distributed Loading (tonnes): 0.55, 0.93, 1.24, 1.70
• Total Width (W): 103

Lengths (L): 1300-1500

• Safe Distributed Loading (tonnes): 0.42, 0.60, 0.68, 1.28

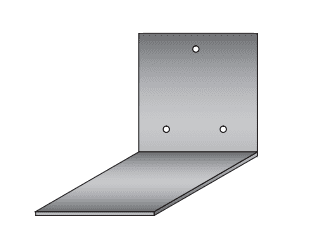

• Lintel Brackets: A=100

Lengths (L): 1600-1800

• Safe Distributed Loading (tonnes): 0.40, 0.50, 1.04
• Lintel Brackets: B=150

Lengths (L): 1900-2100

• Safe Distributed Loading (tonnes): 0.36, 0.92
• Lintel Brackets: C=150

Lengths (L): 2200-2400

• Safe Distributed Loading (tonnes): 0.27, 0.70
• Lintel Brackets: D=5
